FXZ-1C單頭旋蓋機（塑料飲料瓶用）

   本機專門針對塑料飲料瓶設計的專用旋蓋機。塑料飲料瓶的瓶身較軟所以通過擋瓶氣缸將瓶初定位，再通過兩夾瓶氣缸夾住瓶頸，進行精確定位。此機通用性較強，很適用于飲料類用瓶的旋蓋。符合GMP要求。



主要參數：

1. 旋蓋頭數：1個

2. 電源：220V/380V三相四線

3. 總功率：0.35KW

4. 適用瓶徑：Ф40mm-Ф96mm

5. 適用蓋徑：Ф20mm-Ф60mm（旋蓋頭為定制）

6. 生產速度：≤3600瓶/小時

7. 工作氣壓：0.55MPa-0.65MPa

8. 耗氣量：0.3 m3/min

9. 外形尺寸：1000mm × 1000mm × 1900mm

10. 機器重量：200 kg

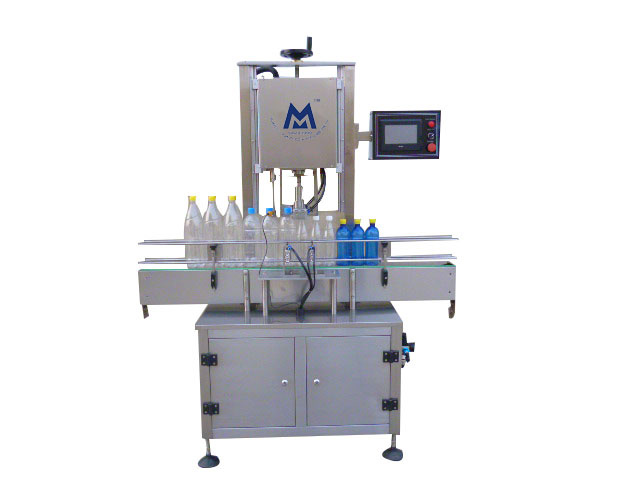

FXZ-1C Semiautomatic Capping Machine (for plastic drinking bottles)

This is a semi machine made for the plastic drinking bottles. Because the bottles are too soft, it uses the piston to block and hold bottles, clamps the bottle neck with two pistons, then screw the caps under accurate positioning. It is in accords with GMP.



Technical parameters:

1.Capping head: 1

2.Voltage: 220/380V, three-phase and four-wire

3.Power: 0.35KW

4.Suitable bottle dia.: Ф40-96mm

5.Suitable cap dia.: Ф20-60mm ( capping head can be customer made)

6.Speed:  ≤3600 bottles/hour

7.Air pressure: 0.55-0.65Mpa

8.Air consumption: 0.3 m3/min

9.Dimensions: 1000×1000×1900mm

10.Weight: 200kg
